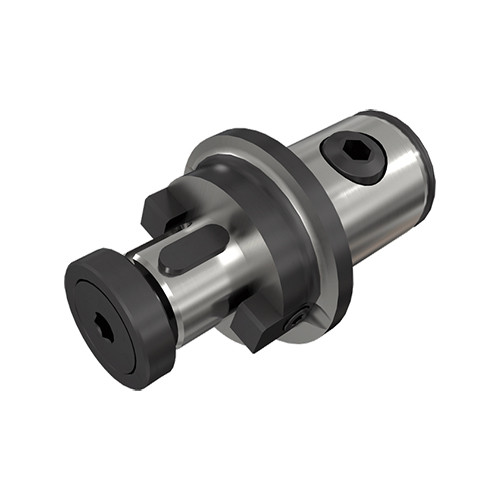

SMH MB40-22
Shell Mill Holder; 40 mm Shank Dia. ; 22 mm Hole Dia. ; 40 mm Body Dia. ; 13 mm Body Length ; MB40 Shank Size ; CAT Shank

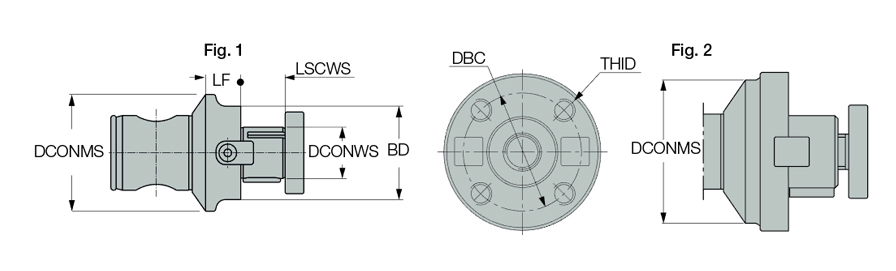

| Connection Diameter Machine Side (DCONMS) | 40 mm | Clamping Length Workpiece Side (LSCWS) | 19 mm |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Material | Steel |
| Shank Size (SS) | MB40 | Shell Mill Pilot Size | 1-1/2″ |
| Functional Length (LF) | 13 mm | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 13 mm | Tool Type | MB General Tools Holders |
| Body Diameter (BD) | 40 mm | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Hex Size | 5/8″ |
Product Features
| Family Description | Shell mill holders with the MB modular boring connection system. | Country of Origin | Italy |
| Remarks | When mounting slitting cutters, remove the drive dogs and use spacer rings. Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Package Weight
0.827
