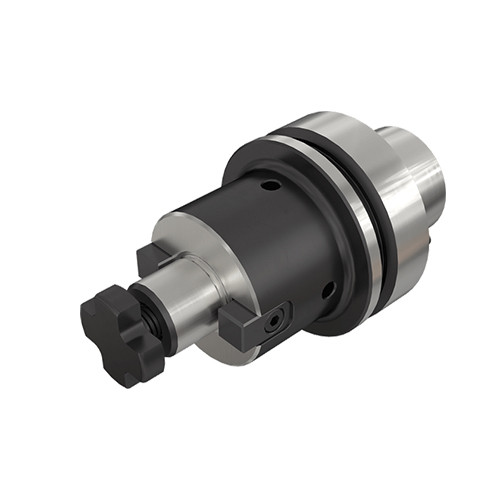

HSK FM63 SEM 22X60
Shell Mill Holder; 63 mm Shank Dia. ; 22 mm Hole Dia. ; 47 mm Body Dia. ; 60 mm Body Length ; 63 Shank Size ; CAT Shank
| Connection Diameter Machine Side (DCONMS) | 63 mm | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Clamping Length Workpiece Side (LSCWS) | 19 mm |
| Shank Size (SS) | 63 | Material | Steel |
| Functional Length (LF) | 60 mm | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 60 mm | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 47 mm | Tool Type | HSK |
| Shank Standard | HSK FM | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | Shell mill adapters with HSK FM shanks, for MAKINO's machine models MAG. These HSK shanks feature two orientation pins for high speed machining of aluminum. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) The orientation pins can be removed, turning the toolholder into a standard HSK F63 type For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (select tools only) |
Shipping Info
Package Weight
2.749
