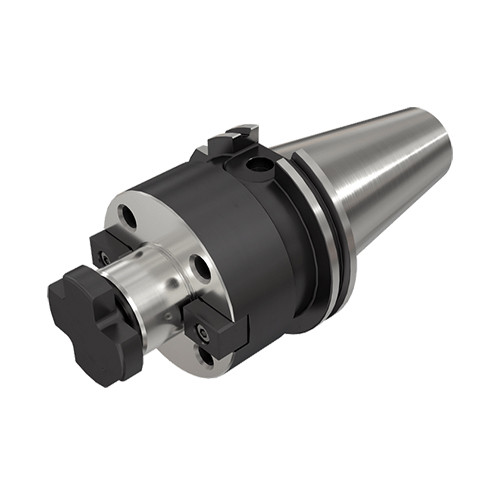

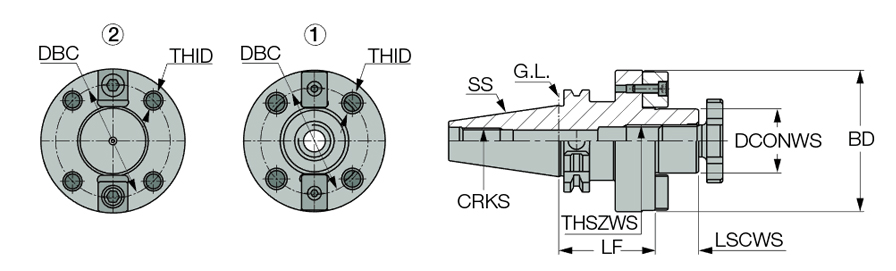

DIN69871 40 FM 40
| Connection Diameter Workpiece Side (DCONWS) | 40 mm | Clamping Length Workpiece Side (LSCWS) | 27 mm |
| Shank Size (SS) | 40 | Material | Steel |
| Functional Length (LF) | 60 mm | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 60 mm | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 88 mm | Tool Type | DIN 69871 |
| Shank Standard | DIN69871 | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Hex Size | 5/8″ | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | DIN 6357 face mill holders with DIN 69871 form A/AD taper shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
5.864
