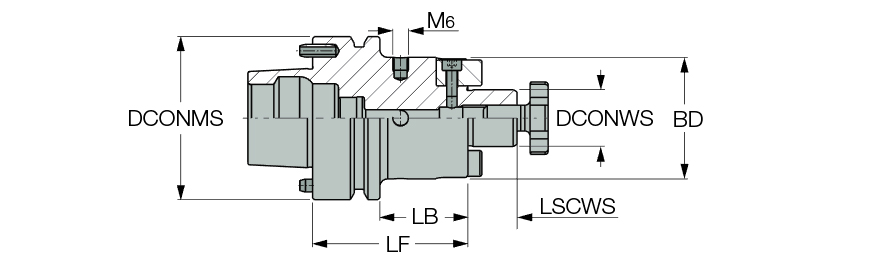

HSK FM63 SEM 32X60
| Connection Diameter Machine Side (DCONMS) | #50 | Hex Size | 5/8″ |
| Shank Size (SS) | CAT50 | Material | Steel |
| Functional Length (LF) | 60 mm | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 34 mm | Flange Diameter (DF) | 3.380″ |
| Shank Standard | HSK FM | Tool Type | HSK |
| Shank Type | CAT | Measurement Type | Metric |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | Shell mill adapters with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) The orientation pins can be removed, turning the toolholder into a standard HSK F63 type |
Shipping Info
Package Weight
3.6470
Related Documentation
