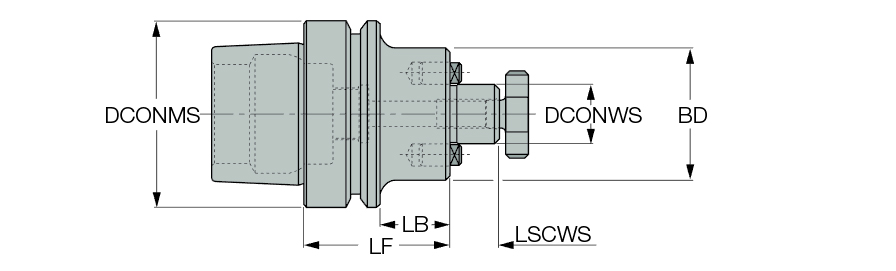

HSK E40 SEM 16X50
| Connection Diameter Machine Side (DCONMS) | 40 mm | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Clamping Length Workpiece Side (LSCWS) | 17 mm |
| Shank Size (SS) | 40 | Material | Steel |
| Functional Length (LF) | 50 mm | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 50 mm | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 38 mm | Tool Type | HSK |
| Shank Standard | HSK A | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Application | | HSK | Shell/Face Mill Adapters | | Connection Code Machine Side (CCMS) | HSK |
Product Features

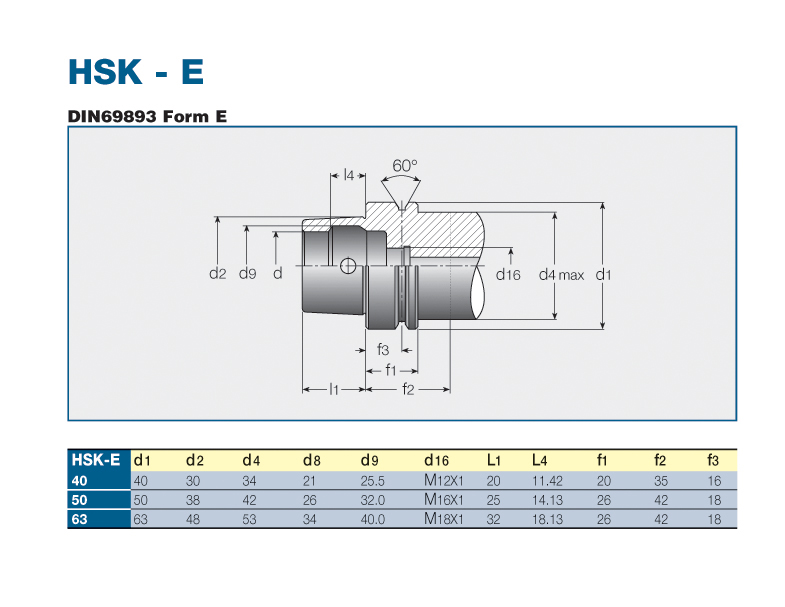

| Family Description | ISO 3937 shell mill holders with HSK E DIN69893 form E tapered shanks. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on "More Info". For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) |
Shipping Info
Package Weight
1.131
