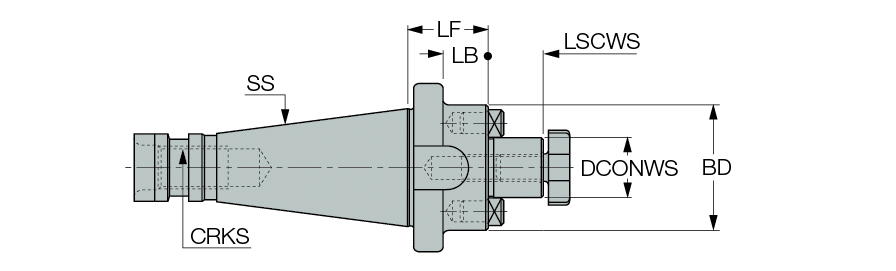

DIN2080 30 SEM 27X 32
| Connection Diameter Machine Side (DCONMS) | #50 | Hex Size | 5/8″ |
| Connection Diameter Workpiece Side (DCONWS) | 27 mm | Clamping Length Workpiece Side (LSCWS) | 21 mm |
| Shank Size (SS) | 30 | Material | Steel |
| Functional Length (LF) | 32 mm | Shell Mill Pilot Size | 1-1/2″ |
| Body Length (LB) | 32 mm | Flange Diameter (DF) | 3.380″ |
| Body Diameter (BD) | 58 mm | Tool Type | DIN 2080 |
| Shank Standard | DIN2080 | Measurement Type | Metric |
| Shank Type | CAT | Body Material | Steel |
| Overhang Length (L2) | 6″ | Protruding Length (LPR) | 6″ |
| Application | | DIN 2080 | Shell/Face Mill Adapters | |
Product Features
| Family Description | DIN 3937 shell mill holders with DIN 2080 A tapered shanks. | Country of Origin | Italy |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) |
Shipping Info
Package Weight
2.039
