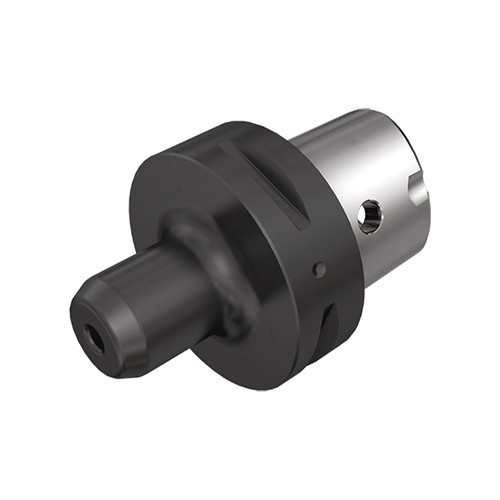

C6 EM5/8X2.560

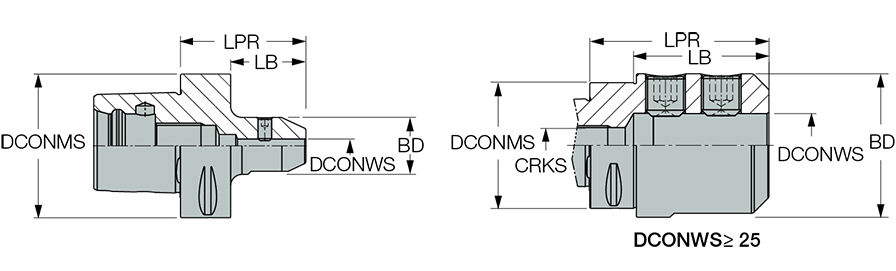

| Connection Size (CSI) | R8 | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 5/8″ | Shank Size (SS) | 63 |
| Body Diameter (BD) | 1.649″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Protruding Length (LPR) | 2.56″ | Body Length (LB) | 1.694″ |
| Overall Length (OAL) | 4.056″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | DIN 1835 form B Weldon endmill holders with CAMFIX (ISO 26623-1) exchangeable tapered shanks. | Country of Origin | Israel |
Shipping Info
Package Length
5.50000
Package Width
3.00000
Package Height
3.00000
Package Weight
3.306
