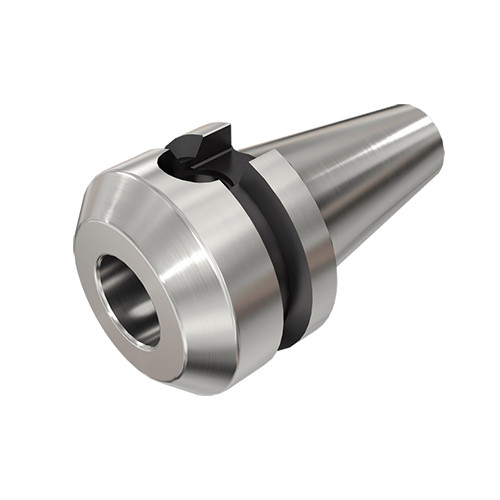

BT40 EM 12X 45

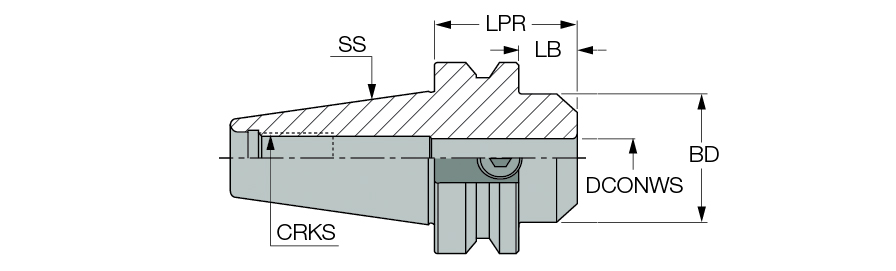

| Connection Size (CSI) | R8 | Shank Size (SS) | 40 |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Tool Type | BT |
| Body Diameter (BD) | 42 mm | Body Length (LB) | 18 mm |
| Protruding Length (LPR) | 45 mm | Body Material | Steel |
| Overall Length (OAL) | 110.4 mm | Connection Code Machine Side (CCMS) | BT |
| Measurement Type | Metric |
Product Features
| Family Description | Short DIN6359 / DIN 1835 form B Weldon endmill holders with BT MAS-403 AD tapered shanks. | Country of Origin | India |
| Remarks | B is the designation for coolant through flange. |
Shipping Info
Package Weight
2.465
