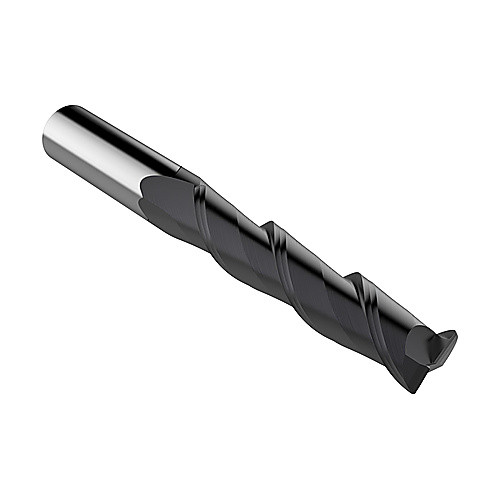

JS522200D4R600.0Z2-M64 JABRO-SOLID2
SQ End Mill; 20 mm Dia. × 100 mm LOC × 20 mm Shank Dia. × 175 mm OAL ; 2 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 100 mm | Corner Radius (RE) | 6 mm |
| Overall Length (OAL) | 175 mm | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Series/List # | JS522 |
| Coating | MEGA-64 | Corner Radius (RE) / Chamfer Width (CHW) | 0.2362″ |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
1.389
