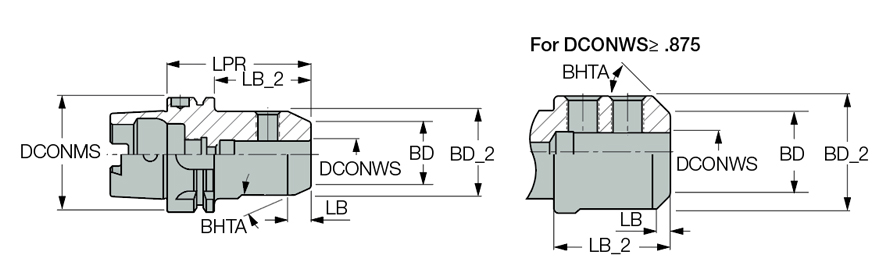

HSK A 50 EM3/16 X2.562
| Connection Size (CSI) | R8 | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 1 1/4″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 1.538″ | Tool Type | HSK |
| Protruding Length (LPR) | 2.562″ |
Product Features
| Family Description | DIN6359 side clamp holders for Weldon shanks with HSK DIN69893 form A tapered shanks. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, see More info. |
Shipping Info
Package Weight
1.0800
