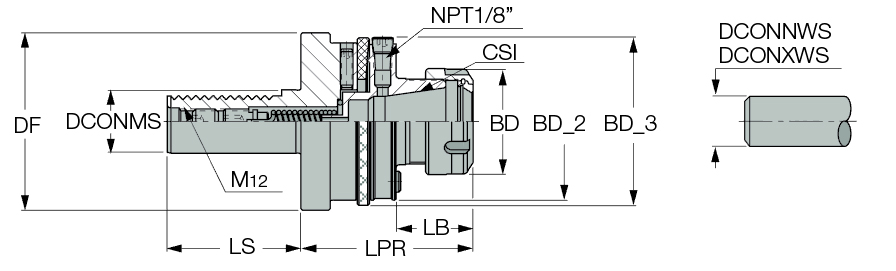

GYRO DIN69880 30 ER32
| Connection Size (CSI) | ER32 | Application | Center Alignment Devices | VDI-DIN69880 |
| Body Diameter (BD) | 50 mm | Tool Type | VDI-DIN69880 |
| Protruding Length (LPR) | 81.65 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Length (LB) | 36.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 30 mm | Inner Diameter | ER32 |
| Shank Standard | DIN69880 |
Product Features
| Family Description | GYRO center alignment ER collet chucks with VDI DIN 69880 shanks. | Country of Origin | Israel |
| Remarks | Radial adjustment 2.0 mm Angular adjustment 1° First time users should buy a GYRO kit which includes a test bar and a bushing for performing the alignment procedure For adaptation options, click on "More Info" |
Shipping Info
Package Weight
4.192
Related Documentation
Eccenter drilling sleevs are used for increasing and decreasing the nominal diameter of indexable drills on milling machines and for misalignment correction on lathes. When used on milling machine,the M engraved scale should be referred to.When used on lathe machine,the L designated scale should bereferred to.The scale appears on the frontal flange of the sleeves.
