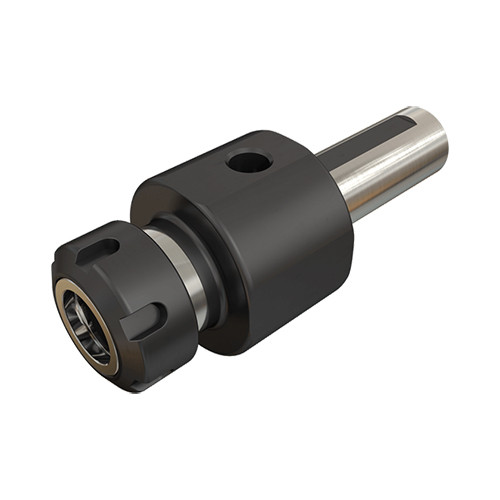

ST3/4X3.000 ER25S
Collet Chuck ; 3/4 Shank Size ; ER25 Connection Size ; 1.654″ Body Dia. ; 3/4″ Shank Dia. ; 0.039″ Min. Capacity ; 0.63″ Max. Capacity
| Shank Size (SS) | 3/4 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER25 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.039″ |
| Body Diameter (BD) | 1.654″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.63″ |
| Protruding Length (LPR) | 2.68″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Drive Size (DRVS) | 1.89″ |
| Shank Length (LS) | 3″ | Body Material | Steel |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | DIN 6499 ER collet chucks with coolant holes and cylindrical shanks. | Country of Origin | Israel |
Shipping Info
Package Weight
1.872
