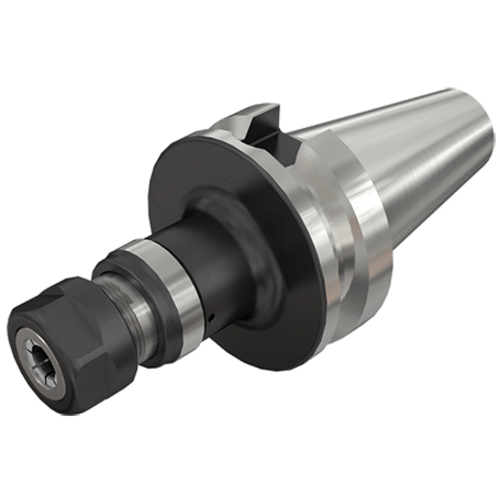

GTI BT50 ER32
Collet Chuck ; 50 Shank Size ; ER32 Connection Size ; 1.968″ Body Dia. ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

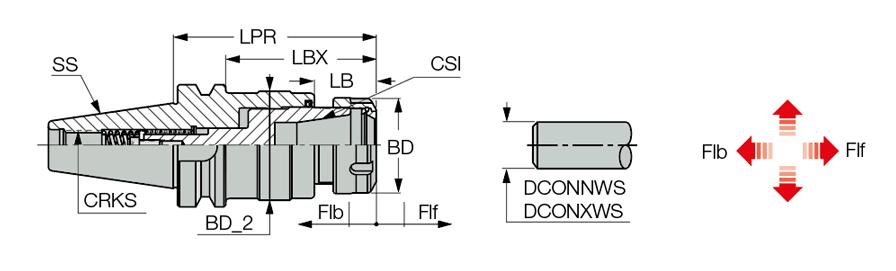

| Shank Size (SS) | 50 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Body Diameter (BD) | 1.968″ | Measurement Type | Inch |
| Protruding Length (LPR) | 4.496″ | Body Material | Steel |
| Tool Type | BT |
Product Features

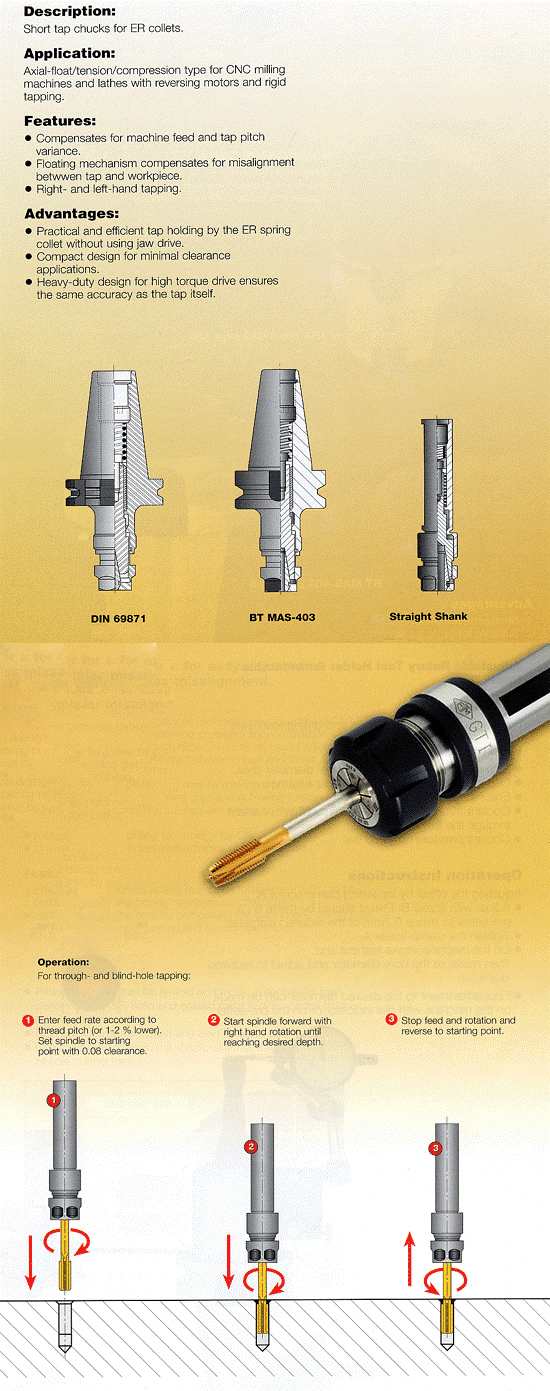

| Family Description | DIN 6499 ER tapping attachments with BT MAS-403 A-type tapered shanks. | Country of Origin | Israel |
| Remarks | For Adaptation Click on More Info. |
Shipping Info
Package Weight
10.371
