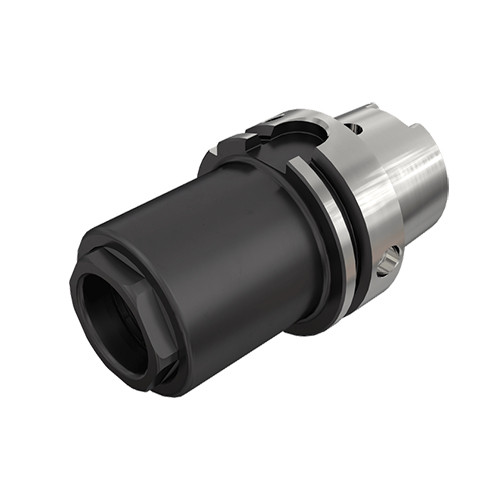

HSK A63 ER32 SHORT
Collet Chuck ; 63 Shank Size ; ER32 Connection Size ; 1.968″ Body Dia. ; 2.48″ Shank Dia. ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

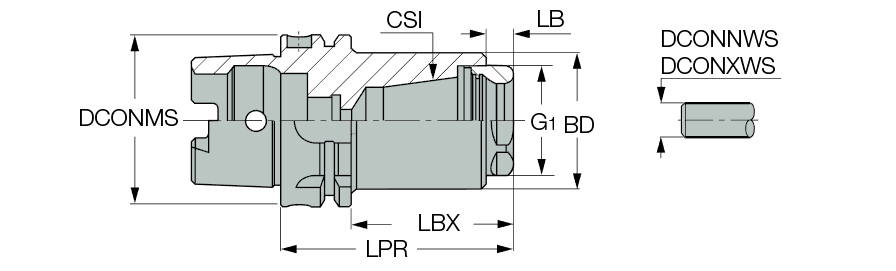

| Shank Size (SS) | 63 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Diameter (BD) | 1.968″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Protruding Length (LPR) | 3.189″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Tool Type | HSK | Connection Code Machine Side (CCMS) | HSK |
Product Features

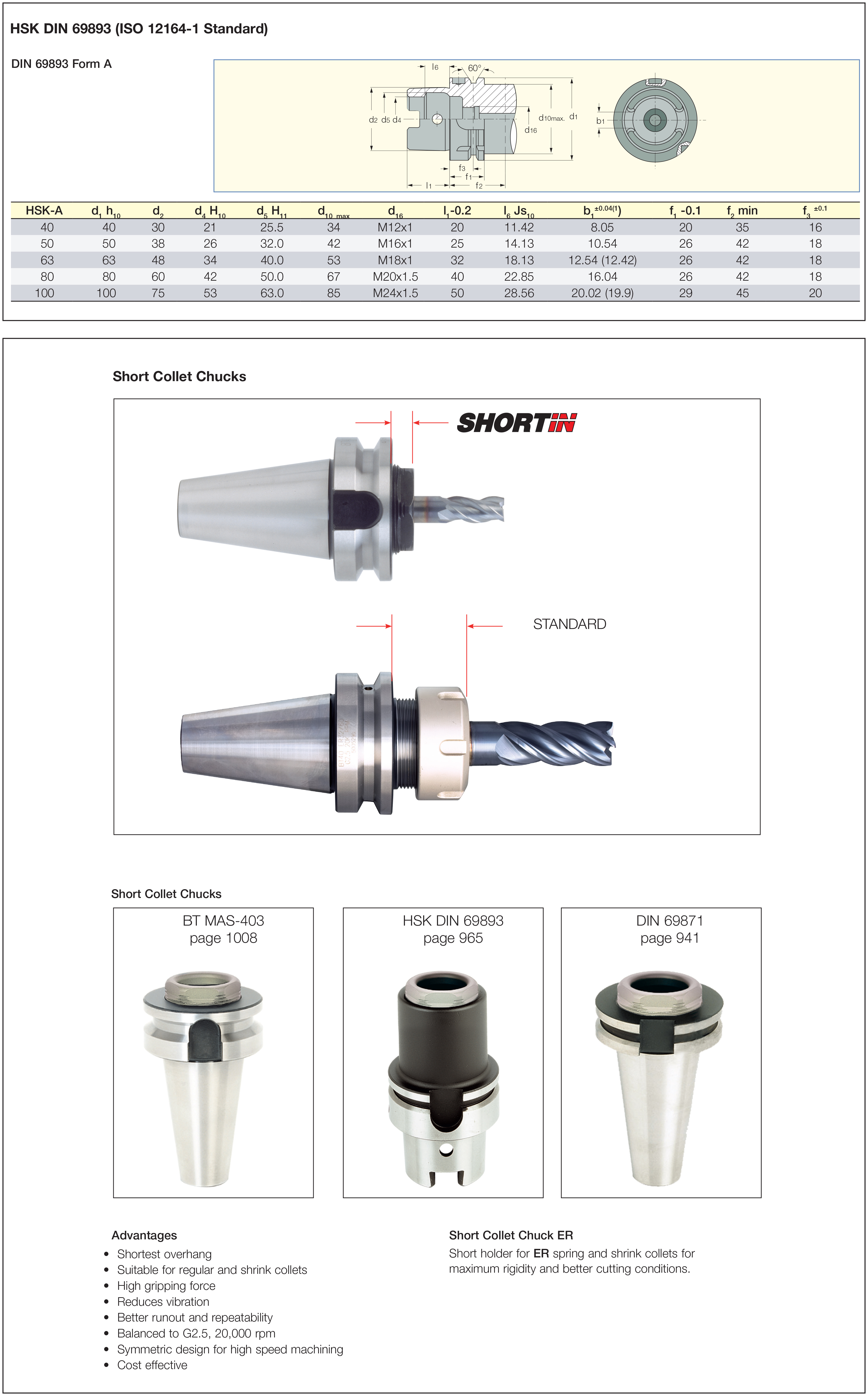

| Family Description | Short DIN6499 ER collet chucks with HSK DIN69893 form A balanceable tapered shanks. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be orordered separately). For shank dimensions, Click on More Info |
Shipping Info
Package Weight
2.760
