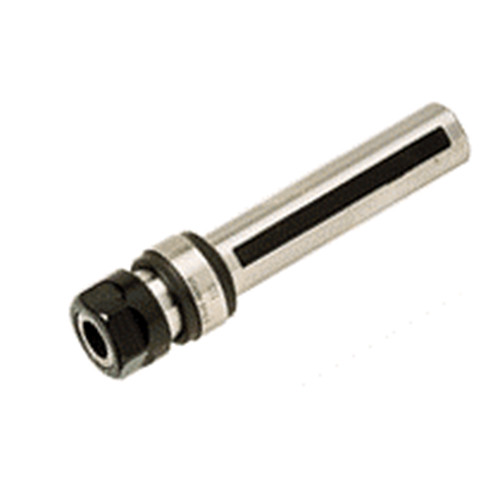

GTI ER25 ST1
Collet Chuck ; ST1 Shank Size ; ER25 Connection Size ; 1.654″ Body Dia. ; 1″ Shank Dia. ; 0.041″ Min. Capacity ; 0.632″ Max. Capacity

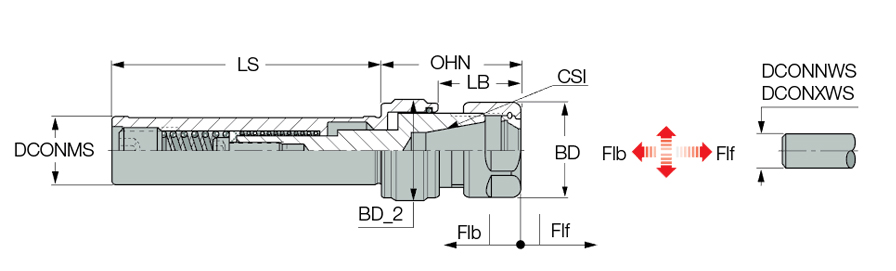

| Shank Size (SS) | ST1 | Tool Type | Cylindrical Shanks |
| Connection Size (CSI) | ER25 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.041″ |
| Body Diameter (BD) | 1.654″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.632″ |
| Protruding Length (LPR) | 2.087″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Shank Standard | GTI ER Tapping Attachment | Diameter Range | .041-.632inch |
| Shank Length (LS) | 3.15″ |
Product Features
| Family Description | DIN 6499 ER tapping attachments with straight shanks. | Country of Origin | Israel |
| Remarks | For Adaptation, Click on More Info |
Shipping Info
Package Length
5.00000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.344
