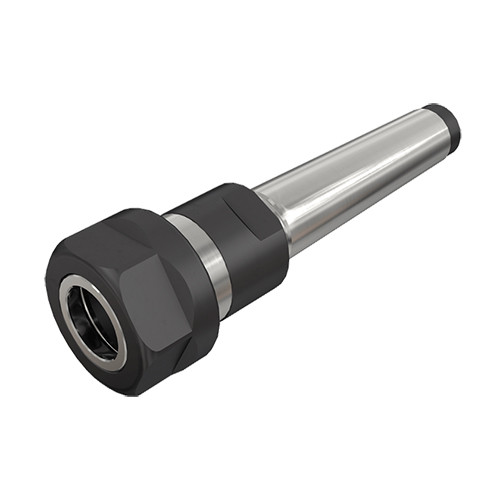

MT 3 ER32X2.717
Collet Chuck ; 3 Shank Size ; ER32 Connection Size ; 1.968″ Body Dia. ; 0.08″ Min. Capacity ; 0.789″ Max. Capacity

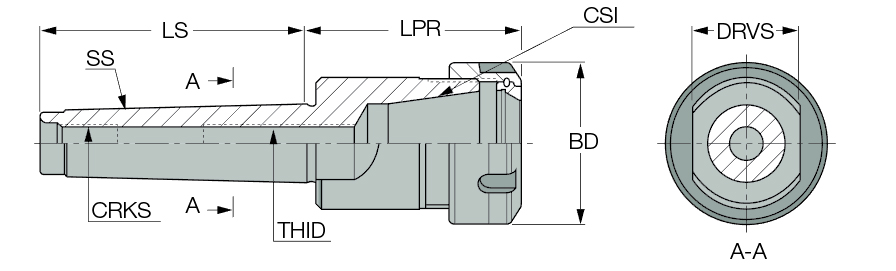

| Shank Size (SS) | 3 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Body Diameter (BD) | 1.968″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.789″ |
| Protruding Length (LPR) | 2.717″ | Measurement Type | Inch |
| Shank Length (LS) | 3.189″ | Drive Size (DRVS) | 0.945″ |
| Tool Type | Morse Taper | Body Material | Steel |
| Style | ER32 |
Product Features
| Family Description | DIN 6499 ER collet chucks with DIN 228-2 Morse taper shanks. | Country of Origin | India |
Shipping Info
Package Length
6.00000
Package Width
2.37500
Package Height
2.37500
Package Weight
1.48
Related Documentation
