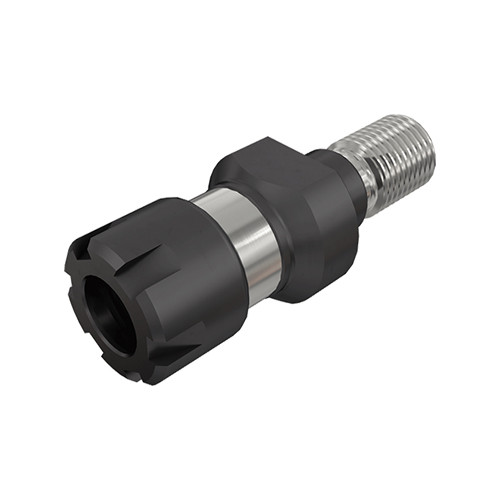

CDP ER16 M12 M
Collet Chuck ; ER16 Connection Size ; 22 mm Body Dia. ; 0.5 mm Min. Capacity ; 10 mm Max. Capacity ; Round Shank

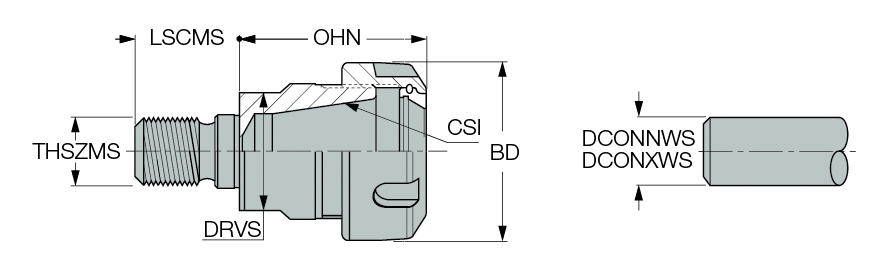

| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 22 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Shank Type | Round | Measurement Type | Metric |
| Shank Standard | FLEXFIT | Drive Size (DRVS) | 17 mm |
| Shank Length (LS) | 22 mm | Body Material | Steel |
| Tool Type | Unique Adapter Milling System | Inner Diameter | ER16 |
| Coolant Supply Property (CSP) | Through Hole |

Product Features
| Family Description | DIN 6499 ER collet chucks with threaded FLEXFIT adaptations. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3 |
Shipping Info
Package Weight
0.185
