GYROST25ER32
Collet Chuck ; 25 Shank Size ; ER32 Connection Size ; 50 mm Body Dia. ; 36.5 mm Body Length ; 2 mm Min. Capacity ; 20 mm Max. Capacity

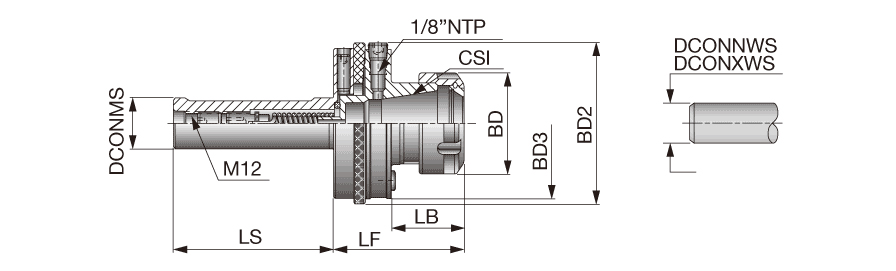

| Shank Size (SS) | 25 | Functional Length (LF) | 66.65 mm |
| Connection Size (CSI) | ER32 | Application | | TungGyro Center Alighnment | |
| Body Diameter (BD) | 50 mm | Tool Type | Accessories |
| Body Diameter_3 (BD_3) | 74 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Protruding Length (LPR) | 8″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Body Length (LB) | 36.5 mm | Measurement Type | Metric |
Product Features
| Family Description | TungGyro Center Alignment Collet Chuck Holder for Lathe | Country of Origin | Israel |
| Remarks | First time users should buy a GYRO kit which includes a test bar and a bushing for performing the alignment procedure. |
Shipping Info
Package Weight
0.8
