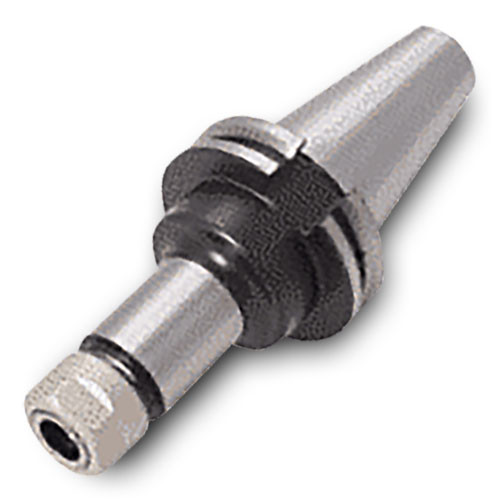

BT40ER16X200
Collet Chuck ; ER16 Connection Size ; 1.102″ Body Dia. ; BT40 Shank Dia. ; 0.02″ Min. Capacity ; 0.394″ Max. Capacity
| Connection Size (CSI) | ER16 | Nose Length | 4.331″ |
| Body Diameter (BD) | 1.102″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Diameter_3 (BD_3) | 1.575″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Protruding Length (LPR) | 8″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 6.811″ | Thread Size | M10 |
| Connection Diameter Machine Side (DCONMS) | BT40 | Body Material | Steel |
Product Features
| Family Description | (Note: Some BT40 holders under 100 mm GL are balanced G2.5@20,000 RPM) | Country of Origin | India |
Shipping Info
Package Weight
4.469
