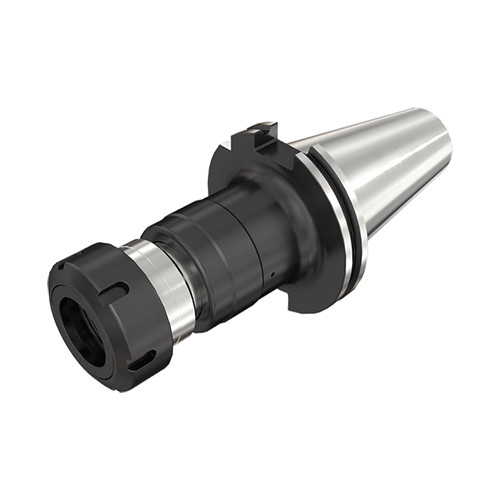

GTI DIN69871 40 ER16
Collet Chuck ; 40 Shank Size ; ER16 Connection Size ; 28 mm Body Dia. ; 0.5 mm Min. Capacity ; 10 mm Max. Capacity

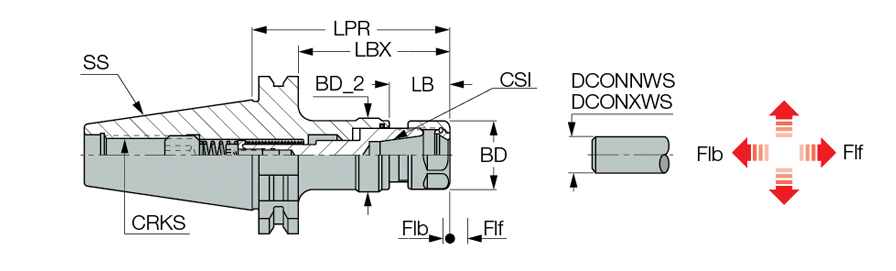

| Shank Size (SS) | 40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Connection Size (CSI) | ER16 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Body Diameter (BD) | 28 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 81.2 mm | Body Material | Steel |
| Tool Type | DIN 69871 |
Product Features
| Family Description | DIN 6499 ER tapping attachments with DIN 69871 form A tapered shanks. | Country of Origin | Israel |
| Remarks | For adaptation options, click on More Info |
Shipping Info
Package Weight
2.447
