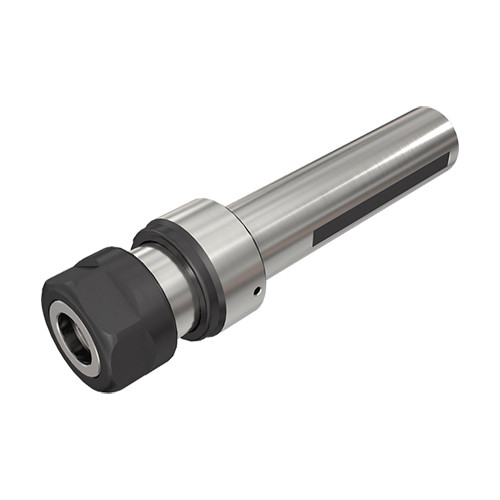

GTI ER40 ST32X80
Collet Chuck ; 32 Shank Size ; ER40 Connection Size ; 63 mm Body Dia. ; 2 mm Min. Capacity ; 20 mm Max. Capacity

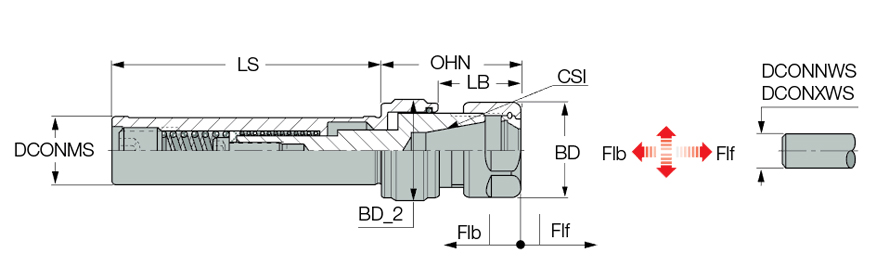

| Shank Size (SS) | 32 | Tool Type | Cylindrical Shanks |
| Connection Size (CSI) | ER40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 63 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Protruding Length (LPR) | 113.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Shank Length (LS) | 80 mm |
Product Features
| Family Description | DIN 6499 ER tapping attachments with straight shanks. | Country of Origin | Israel |
| Remarks | For Adaptation, Click on More Info . |
Shipping Info
Package Weight
3.854
