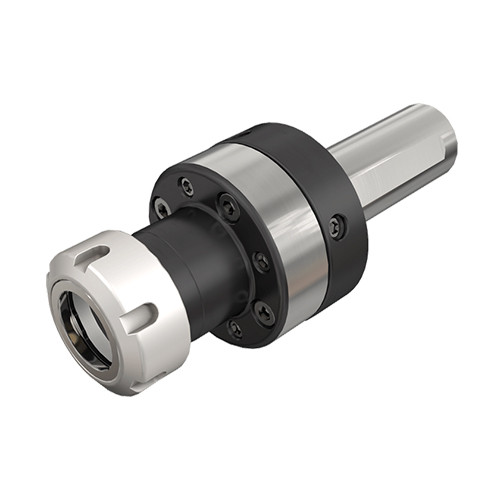

ADJ ST32 D70 ER32
Collet Chuck ; 32 Shank Size ; ER32 Connection Size ; 50 mm Body Dia. ; 2 mm Min. Capacity ; 20 mm Max. Capacity

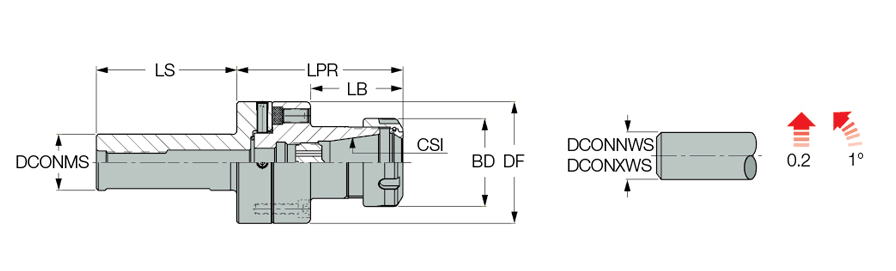

| Shank Size (SS) | 32 | Tool Type | Cylindrical Shanks |
| Connection Size (CSI) | ER32 | Coolant Supply Property (CSP) | Through Hole |
| Body Diameter (BD) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Protruding Length (LPR) | 94.5 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Shank Length (LS) | 80 mm | Body Material | Steel |
Product Features
| Family Description | FINEFIT DIN 6499 ER collet chucks with center alignment and cylindrical shanks with a clamping flat | Country of Origin | Israel |
| Remarks | Radial adjustment 0.2 mm Angular adjustment 1° |
Shipping Info
Package Weight
4.511
