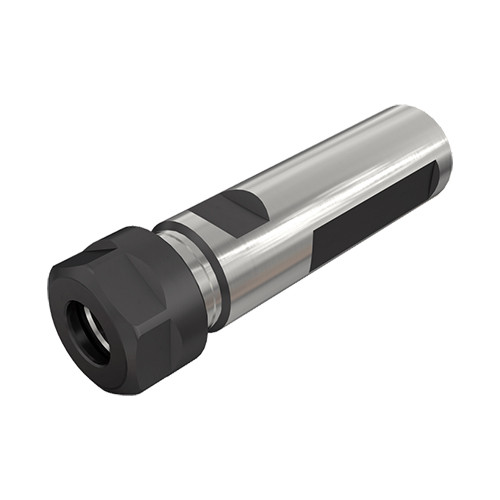

ST 32X 50 ER32 F
Collet Chuck ; 32 Shank Size ; ER32 Connection Size ; 32 mm Shank Dia. ; 2 mm Min. Capacity
| Shank Size (SS) | 32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |

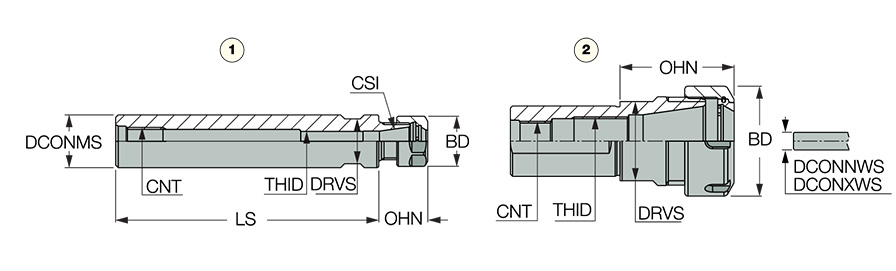

| Connection Size (CSI) | ER32 | Figure | 2 |
| Protruding Length (LPR) | 42 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Drive Size (DRVS) | 36 mm |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | DIN 6499 ER collet chucks with straight shanks | Country of Origin | Germany |
| Remarks | F suffix indicates a flat on the shank |
Shipping Info
Package Weight
1.382
