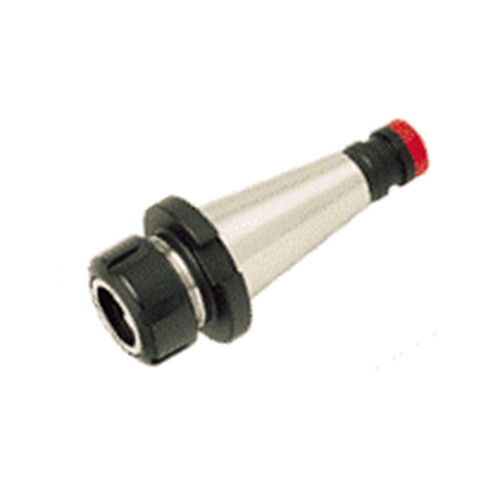

DIN2080 40 ER20X100
Collet Chuck ; 40 Shank Size ; ER20 Connection Size ; 34 mm Body Dia. ; 1 mm Min. Capacity ; 13 mm Max. Capacity
| Shank Size (SS) | 40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Connection Size (CSI) | ER20 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Diameter (BD) | 34 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 100 mm | Body Material | Steel |
| Tool Type | DIN 2080 |
Product Features
| Family Description | DIN 6499 ER collet chucks with DIN 2080 AD tapered shanks. | Country of Origin | Italy |
Shipping Info
Package Weight
2.769
