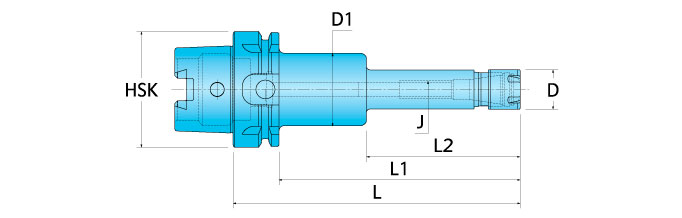

HSKA63ER16X100M
Collet Chuck ; ER16 Connection Size ; 0.866″ Body Dia. ; HSK-A 63 Shank Dia. ; 0.02″ Min. Capacity ; 0.394″ Max. Capacity
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Diameter (BD) | 0.866″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Protruding Length (LPR) | 8″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 2.913″ | Thread Size | M10 |
| Connection Diameter Machine Side (DCONMS) | HSK-A 63 | Body Material | Steel |
Product Features
| Country of Origin | Italy |
Shipping Info
Package Weight
1.931
