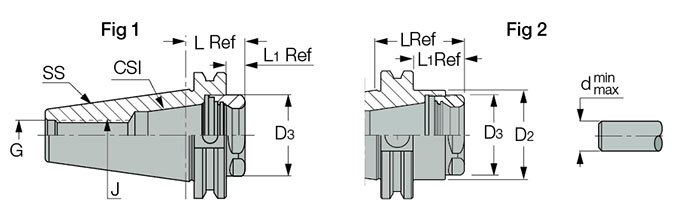

CAT40ER40SHORT
Collet Chuck ; ER40 Connection Size ; 1.969″ Body Dia. ; CAT40 Shank Dia. ; 0.12″ Min. Capacity ; 1.025″ Max. Capacity
| Connection Size (CSI) | ER40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.12″ |
| Body Diameter (BD) | 1.969″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.025″ |
| Body Diameter_3 (BD_3) | 2.362″ | Measurement Type | Inch |
| Protruding Length (LPR) | 8″ | Thread Size | 5/8-11 |
| Body Length Maximum (LBX) | 1.37″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | CAT40 |
Product Features
| Country of Origin | Turkey |
Shipping Info
Package Weight
2.385
