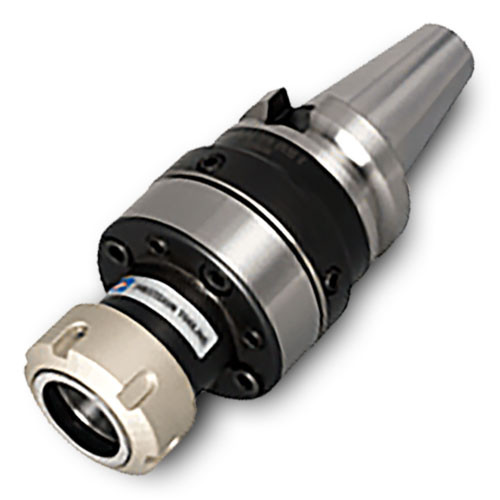

ADJCAT50D2.756ER32
Collet Chuck ; ER32 Connection Size ; 1.968″ Body Dia. ; CAT50 Shank Dia. ; 0.08″ Min. Capacity ; 0.789″ Max. Capacity
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Body Diameter (BD) | 1.968″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.789″ |
| Protruding Length (LPR) | 8″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 4.152″ | Thread Size | M22X1.5 |
| Connection Diameter Machine Side (DCONMS) | CAT50 | Body Material | Steel |
| Nose Length | 2.067″ | Body Diameter_2 (BD_2) | 2.756″ |
Product Features
| Family Description | AD Style Coolant (coolant through the center) Radial adjustment .002″ Angular adjustment 1° | Country of Origin | Israel |
Shipping Info
Package Weight
9.833
