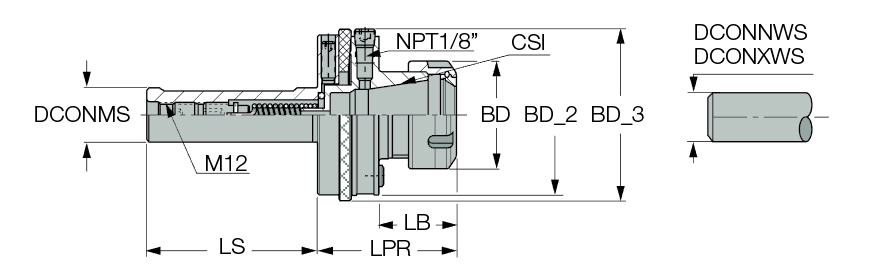

GYRO ST20 ER20
| Connection Size (CSI) | ER20 | Application | Center Alignment Devices |
| Body Diameter (BD) | 34 mm | Tool Type | Cylindrical Shanks |
| Protruding Length (LPR) | 58.8 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Length Maximum (LBX) | 35.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
Product Features

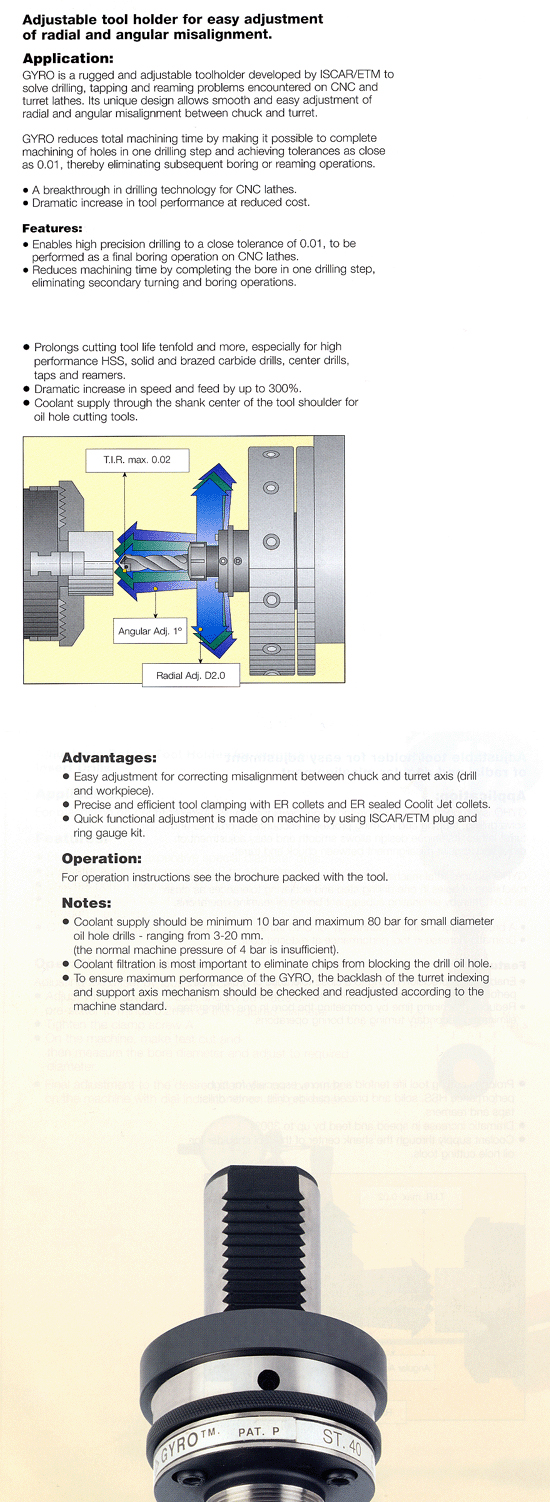

| Family Description | GYRO ER collet center alignment device with a cylindrical shank. | Country of Origin | Israel |
| Remarks | Radial adjustment 2.0 mm Angular adjustment 1° First time users should buy a GYRO kit which includes a test bar and a bushing for performing the alignment procedure For adaptation options, click on "More Info" |
Shipping Info
Package Weight
1.852
