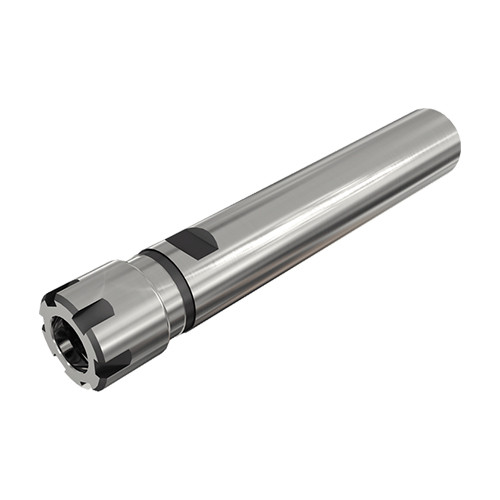

ST 16X150 ER11 M
Collet Chuck ; 16 Shank Size ; ER11 Connection Size ; 16 mm Body Dia. ; 16 mm Shank Dia. ; 0.5 mm Min. Capacity ; 7 mm Max. Capacity

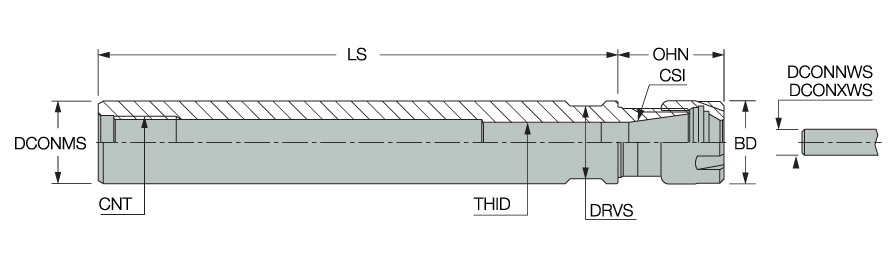

| Shank Size (SS) | 16 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER11 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 16 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Protruding Length (LPR) | 120.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Drive Size (DRVS) | 13 mm |
| Shank Length (LS) | 150 mm | Body Material | Steel |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with cylindrical shanks. | Country of Origin | Germany |
Shipping Info
Package Weight
0.459
