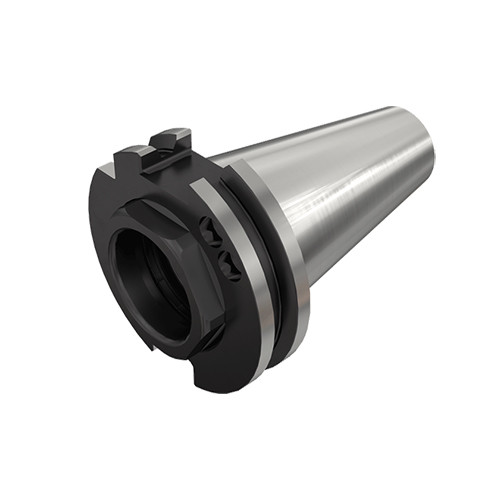

DIN69871 40 ER32 SHORT
Collet Chuck ; 40 Shank Size ; ER32 Connection Size ; 40 mm Body Dia. ; 40 mm Shank Dia. ; 2 mm Min. Capacity ; 20 mm Max. Capacity

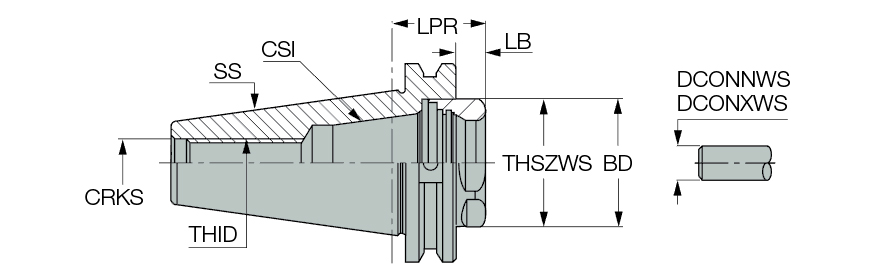

| Shank Size (SS) | 40 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 40 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Protruding Length (LPR) | 25.1 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Tool Type | DIN 69871 | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | SHORTIN short front end ER collet chucks with DIN 69871 form AD tapered shanks. | Country of Origin | Turkey |
| Remarks | For user guide, Click on More Info. |
Shipping Info
Package Weight
1.508
