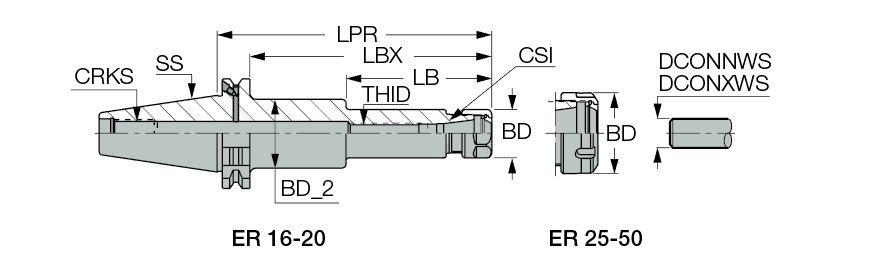

DIN69871 40 ER16X100 B

Item # EH4511564

Brand: Iscar

MFG #: 4511564

Legacy Part #: EH4511564

Connection Size (CSI)

ER16

Tool Type

DIN 69871

Body Diameter (BD)

1.11″

Coolant Supply Property (CSP)

Through Hole

Protruding Length (LPR)

100 mm

Connection Diameter Minimum Workpiece Side (DCONNWS)

0.5 mm

Body Length Maximum (LBX)

80.9 mm

Measurement Type

Metric

Product Features

Family Description

DIN 6499 ER collet chucks with a DIN 69871 form AD/B taper shanks.

Country of Origin

Israel

Remarks

B is the designation for coolant through flange.

Package Weight

2.5050
