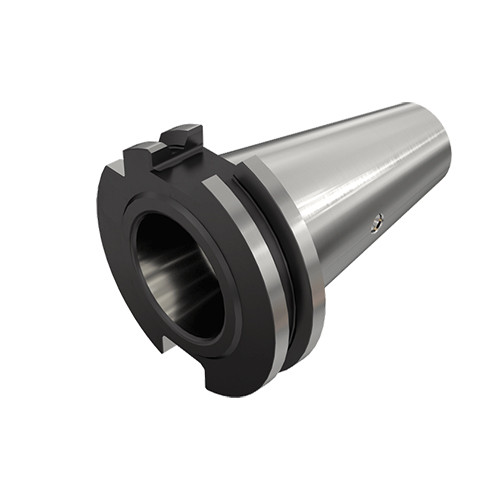

DIN69871 40 ER32 CLICK-IN
Collet Chuck ; 40 Shank Size ; 32 SRF Connection Size ; 40 mm Shank Dia.

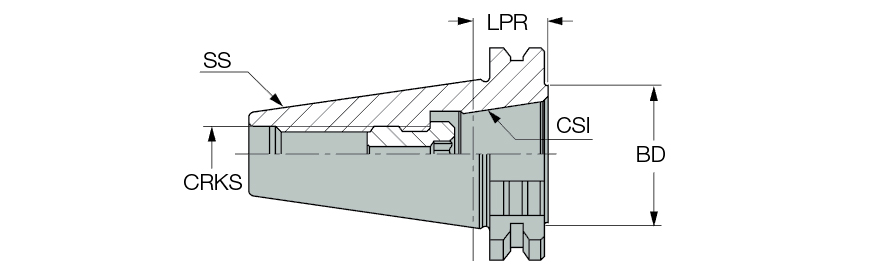

| Shank Size (SS) | 40 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | 32 SRF | Measurement Type | Metric |
| Protruding Length (LPR) | 20.1 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Tool Type | DIN 69871 |
Product Features
| Family Description | DIN69871 form AD tapered shanks to CLICKIN quick change connection adapters. | Country of Origin | Israel |
| Remarks | Tightening torque: 24 Kgxm For Adaptation Click on More Info |
Shipping Info
Package Weight
1.680
Related Documentation
