| Shank Size (SS) | HSK A63 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.197″ |
| Protruding Length (LPR) | 5.433″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Tool Type | High speed spindles | Connection Code Machine Side (CCMS) | HSK |
Product Features

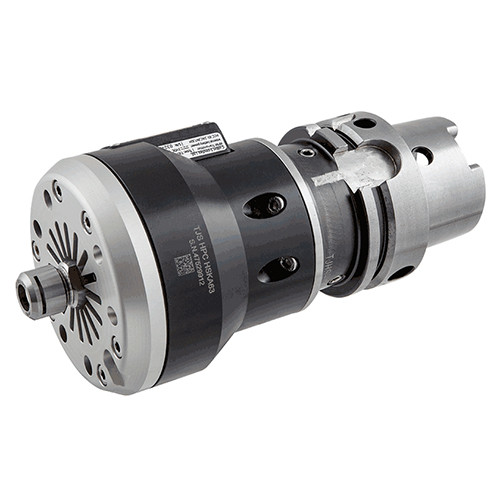

| Family Description | High-Pressure Coolant driven HSM spindle with HSK shank, for small diameter cutting tools. Can be used for semi finish and finish machining applications. | Country of Origin | Israel |
| Remarks | Coolant pressure 217-1000 PSI and flow rate 2.6-5.8 GPM RPM range 20,000-45,000 RPM The spindle provides only external strong coolant jet around the tool Battery not supplied |
Shipping Info
Package Weight
0.441
