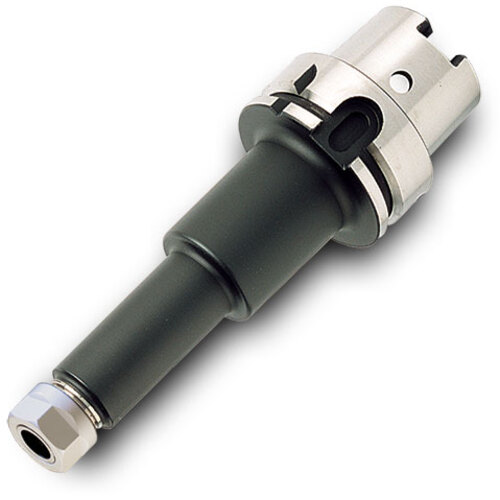

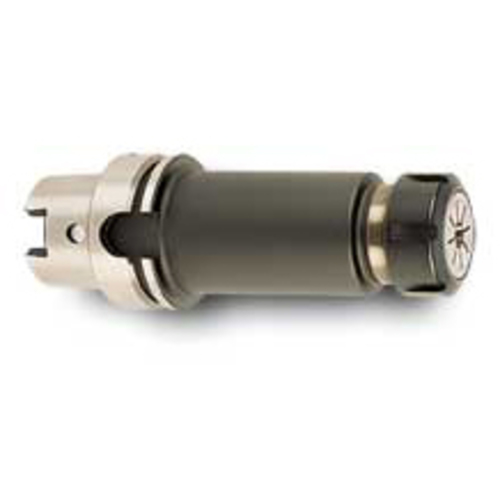

HSKA100ER32X100
Collet Chuck ; ER32 Connection Size ; 1.968″ Body Dia. ; HSK-A 100 Shank Dia. ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Diameter (BD) | 1.968″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Protruding Length (LPR) | 8″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 2.795″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | HSK-A 100 |
Product Features
| Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
6.283
