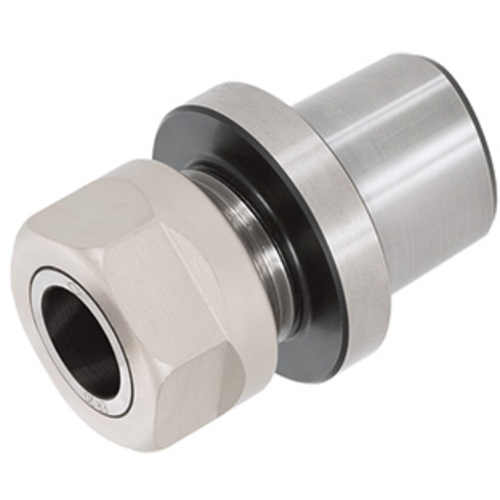

C6ER20X060
Collet Chuck ; C6 Shank Size ; ER20 Connection Size ; 1.339″ Body Dia. ; 1.496″ Body Length ; 2.48″ Shank Dia. ; 0.039″ Min. Capacity ; 0.512″ Max. Capacity

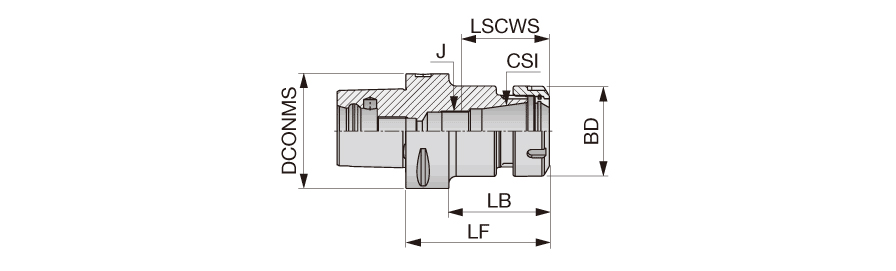

| Shank Size (SS) | C6 | Functional Length (LF) | 2.362″ |
| Connection Size (CSI) | ER20 | Application | | Face contact interface | |
| Body Diameter (BD) | 1.339″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Protruding Length (LPR) | 8″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.039″ |
| Body Length (LB) | 1.496″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.512″ |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Shank Length (LS) | 1.496″ | Body Material | Steel |
Product Features
| Family Description | TungCap ER collet chucks holders (DIN 6499) | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included |
Shipping Info
Package Weight
2.094
