ST 20X 55 ER16 MF D
Collet Chuck ; 20 Shank Size ; ER16 Connection Size ; 22 mm Body Dia. ; 0.5 mm Min. Capacity ; 10 mm Max. Capacity

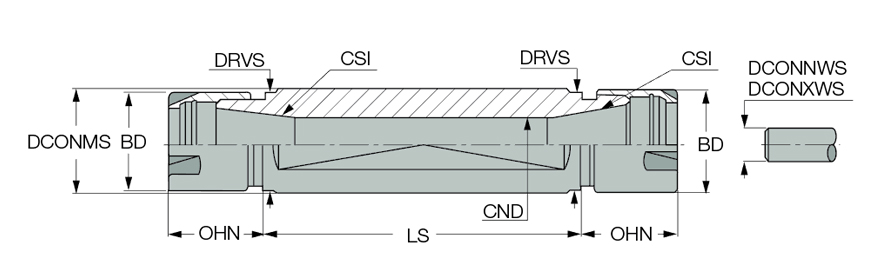

| Shank Size (SS) | 20 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 22 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Protruding Length (LPR) | 52.5 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Drive Size (DRVS) | 17 mm |
| Shank Length (LS) | 55 mm | Body Material | Steel |
| Tool Type | Cylindrical Shanks |
Product Features

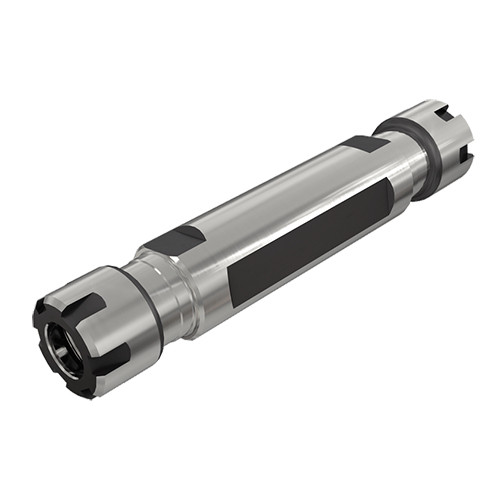

| Family Description | Double-ended mini collets with cylindrical shanks and a clamping flat. | Country of Origin | Israel |
Shipping Info
Package Weight
0.377
