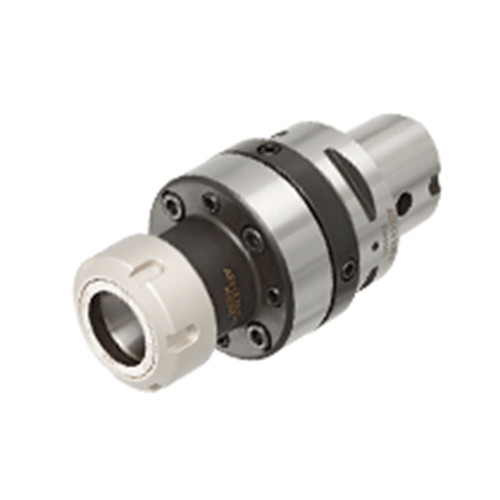

ADJ C5 ER32
Collet Chuck ; 50 Shank Size ; ER32 Connection Size ; 1.968″ Body Dia. ; 1.968″ Shank Dia. ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

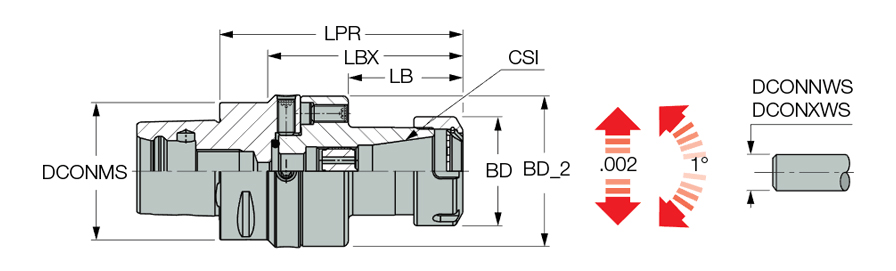

| Shank Size (SS) | 50 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Diameter (BD) | 1.968″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Protruding Length (LPR) | 4.528″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Body Material | Steel |
| Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
Product Features
| Family Description | FINEFIT center alignment shank and base with CAMFIX adaptations for specially tailored toolholders. | Country of Origin | Israel |
| Remarks | Radial adjustment .002, Angular adjustment 1° |
Shipping Info
Package Weight
4.427
