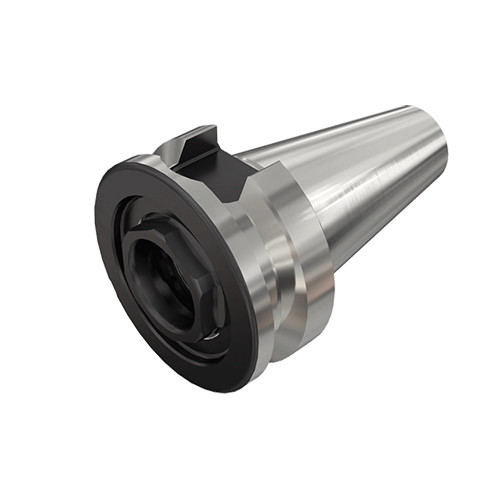

BT40 ER40 SHORT
Collet Chuck ; 40 Shank Size ; ER40 Connection Size ; 1.968″ Body Dia. ; 0.118″ Min. Capacity ; 1.024″ Max. Capacity

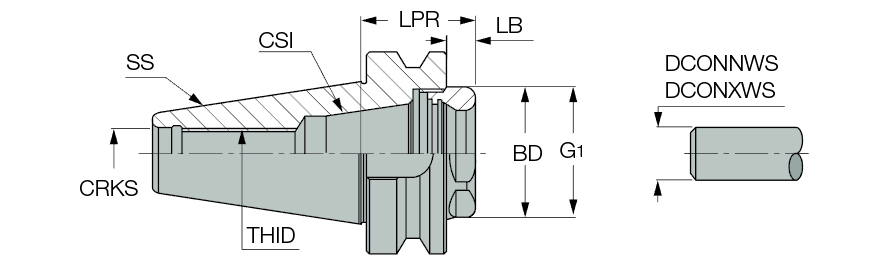

| Shank Size (SS) | 40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.118″ |
| Connection Size (CSI) | ER40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.024″ |
| Body Diameter (BD) | 1.968″ | Measurement Type | Inch |
| Protruding Length (LPR) | 1.693″ | Body Material | Steel |
| Tool Type | BT | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | SHORTIN short ER collet chucks with BT MAS-403 AD tapered shanks. | Country of Origin | India |
| Remarks | For Adaptation Click on More Info. B is the designation for coolant through flange. |
Shipping Info
Package Weight
2.039
