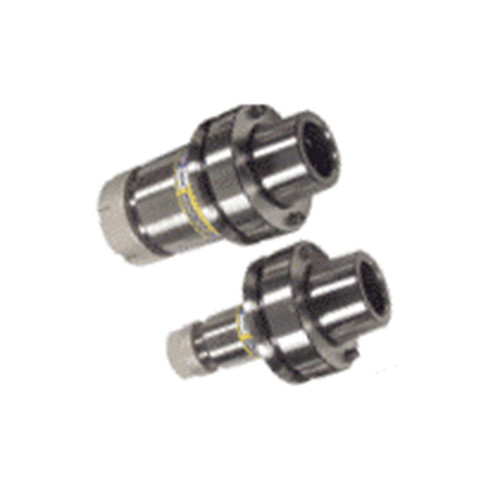

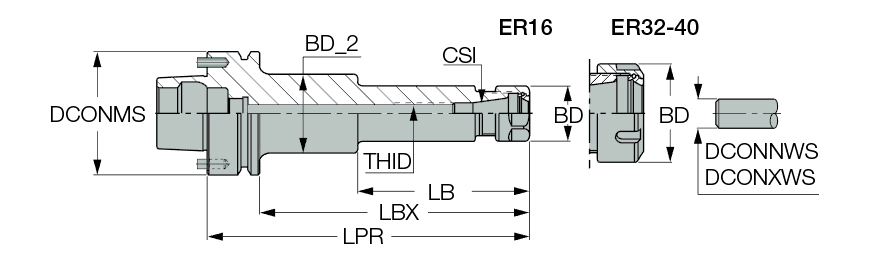

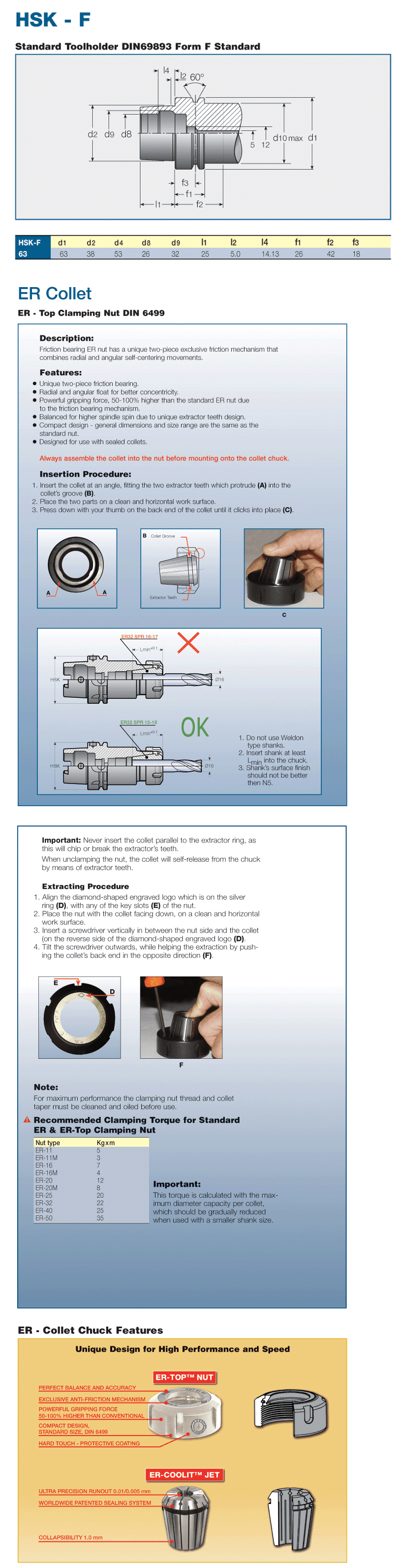

HSK FM80 ER16X4.724
Collet Chuck ; 80 Shank Size ; ER16 Connection Size ; 1.102″ Body Dia. ; 3.15″ Shank Dia. ; 0.02″ Min. Capacity ; 0.394″ Max. Capacity
| Shank Size (SS) | 80 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Diameter (BD) | 1.102″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Protruding Length (LPR) | 4.724″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3.15″ | Body Material | Steel |
| Tool Type | HSK | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | ER collet chuck with HSK FM shanks, for MAKINO's machine models MAG Series A. These HSK shanks feature two orientation pins for high speed machining of aluminum. | Country of Origin | Israel |
| Remarks | Used on Makino machine models MAG The anti-slip pins can be removed, turning the toolholders into a standard HSK F63 type A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) |
