ADJ BT40 D70 ER32
Collet Chuck ; 40 Shank Size ; ER32 Connection Size ; 1.968″ Body Dia. ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

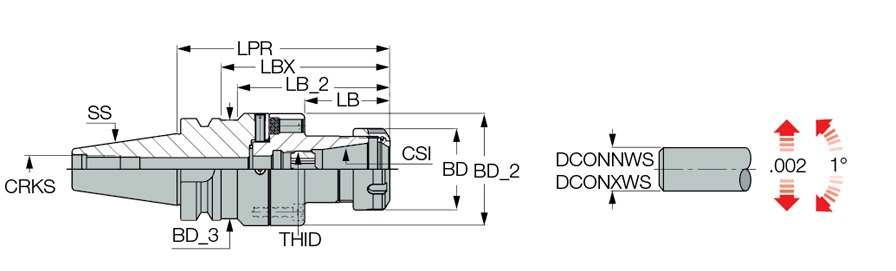

| Shank Size (SS) | 40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Connection Size (CSI) | ER32 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Body Diameter (BD) | 1.968″ | Measurement Type | Inch |
| Protruding Length (LPR) | 5.098″ | Body Material | Steel |
| Tool Type | BT | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | FINEFIT, DIN 6499 ER collet chucks with center alignment and BT MAS-403 ADB tapered shanks. | Country of Origin | Israel |
| Remarks | Radial adjustment .002, Angular adjustment 1° Add B to the designation for coolant through flange option. |
Shipping Info
Package Weight
5.939
