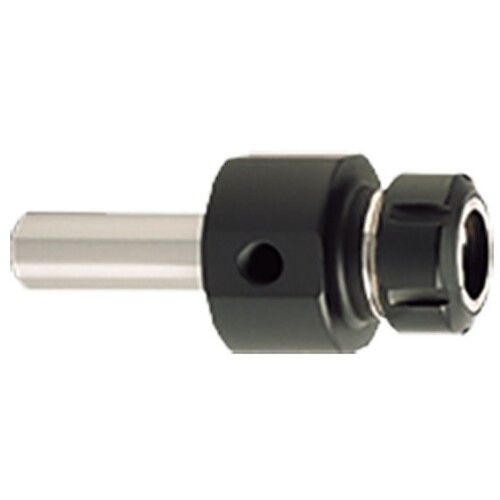

ST3/4X3.000 ER16S

Item # EH4501926

Brand: Iscar

MFG #: 4501926

Alternate MFG #: 04501926

Legacy Part #: EH4501926

UPC #: 7291075156911

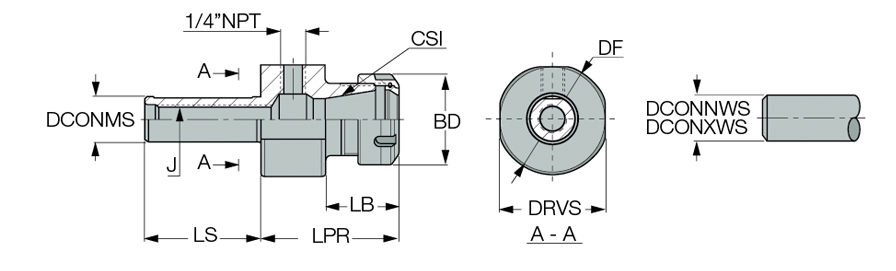

Shank Size (SS)

3/4

Coolant Supply Property (CSP)

Through Hole

Connection Size (CSI)

ER16

Connection Diameter Minimum Workpiece Side (DCONNWS)

0.02″

Body Diameter (BD)

1.102″

Connection Diameter Maximum Workpiece Side (DCONXWS)

0.394″

Protruding Length (LPR)

2.15″

Measurement Type

Inch

Connection Diameter Machine Side (DCONMS)

3/4″

Drive Size (DRVS)

1.339″

Shank Length (LS)

3″

Body Material

Steel

Tool Type

Cylindrical Shanks

Product Features

Family Description

DIN 6499 ER collet chucks with coolant holes and cylindrical shanks.

Country of Origin

Israel

Package Weight

0.893
