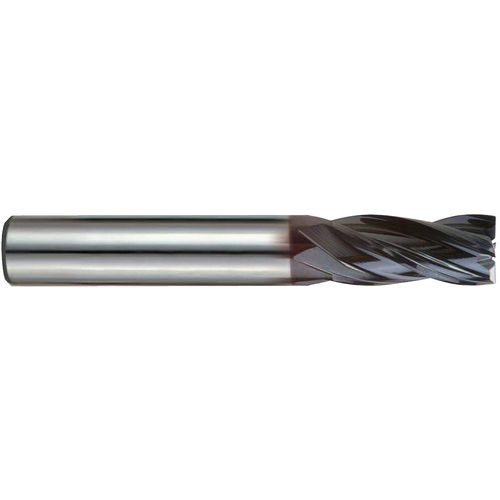

Square End Mill; 15/32″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; AlTiN ; Series EMD47
| Cutting Diameter (DC) | 15/32″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Chamfer Width (CHW) | 0.011″ |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | High Performance |
| Overall Length (OAL) | 3″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.4688″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | EMD47 |
| Flute Helix Angle (FHA) | Multiple | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.5039
Package Width
0.7087
Package Height
0.7087
Package Weight
0.2621745
