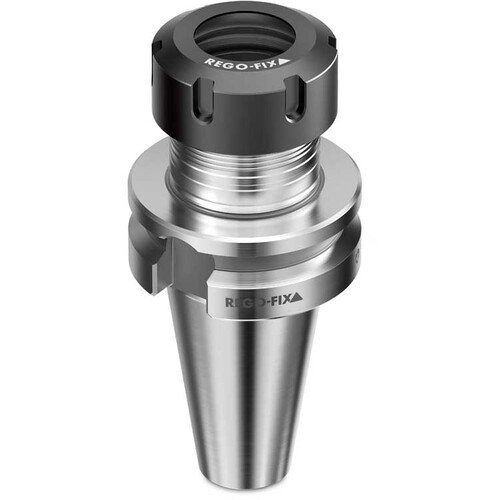

| Shank Size (SS) | #50 | Style | B |
| Connection Size (CSI) | #16 | Coolant Supply Property (CSP) | Coolant Thru |
| Protruding Length (LPR) | 100 mm | Type | ER |
| Body Length Maximum (LBX) | 3.93″ | Measurement Type | Metric |
| Flange Diameter (DF) | 1.11″ | Nut Diameter | 28 mm |
| Shank Type | BT | Length Group | Standard |
Product Features
| Remarks | •Case hardened to 58–62 HRc •Pre-balanced to G2.5 @ 22,000 RPM's •T.I.R. from the collet cavity to the holder taper 0.0001″ or better •Lot Numbers for lot traceability •Through the spindle coolant or through the flange version available •BT & CAT+ have Hi-Q clamping nut included •AT3 or beter tapers guaranteed •Superior surface finish at 0.25Ra for better fit and accuracy •Swiss made to ISO 90001 •Big Plus System - Licensed by Big Daishowa | Country of Origin | Switzerland |
Shipping Info
Package Weight
.250
