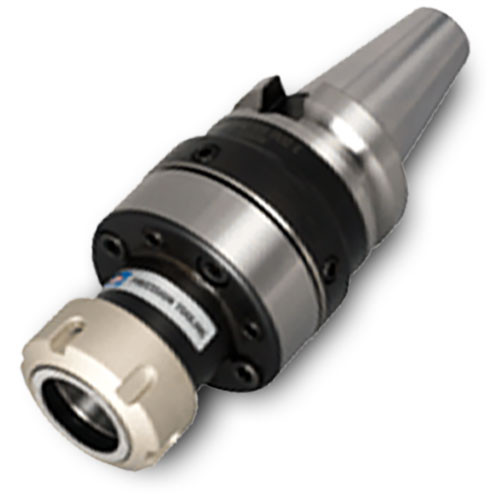

ADJBT50D70ER32
Collet Chuck ; ER32 Connection Size ; 1.968″ Body Dia. ; BT50 Shank Dia. ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

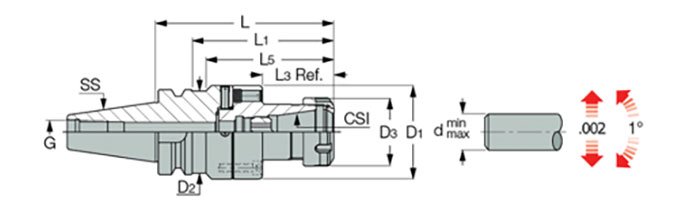

| Connection Size (CSI) | ER32 | Nose Length | 2.067″ |
| Body Diameter (BD) | 1.968″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Diameter_3 (BD_3) | 2.756″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Protruding Length (LPR) | 8″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 4.193″ | Thread Size | M22X1.5 |
| Body Length_2 (LB_2) | 4.193″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | BT50 | Body Diameter_2 (BD_2) | 2.756″ |
Product Features
| Family Description | Radial adjustment 0.05 mm Angular adjustment 1° | Country of Origin | Israel |
Shipping Info
Package Weight
12.128
