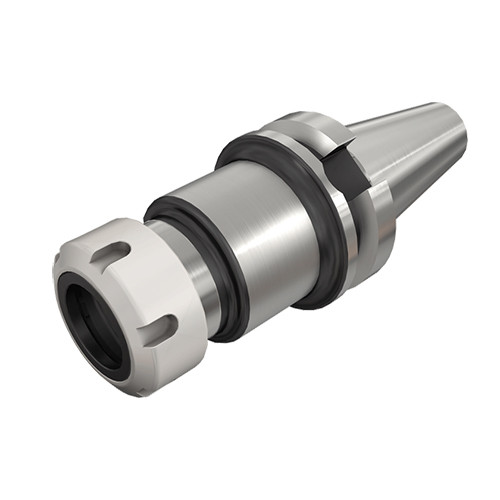

BT40 ER11X100 M
Collet Chuck ; 40 Shank Size ; ER11 Connection Size ; 0.63″ Body Dia. ; 0.02″ Min. Capacity ; 0.276″ Max. Capacity

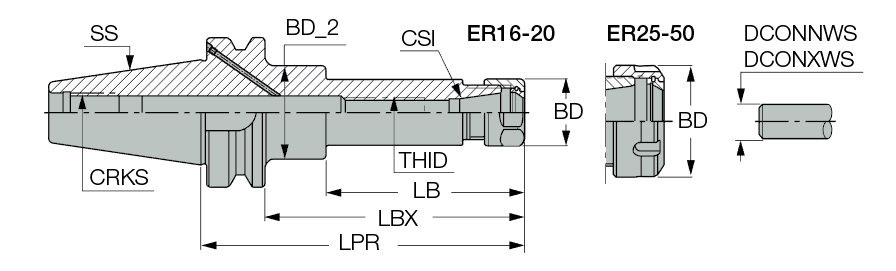

| Shank Size (SS) | 40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Connection Size (CSI) | ER11 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.276″ |
| Body Diameter (BD) | 0.63″ | Measurement Type | Inch |
| Protruding Length (LPR) | 3.937″ | Body Material | Steel |
| Tool Type | BT | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | DIN6499 ER collet chucks with BT MAS-403 ADB tapered shanks. | Country of Origin | India |
| Remarks | B is the designation for coolant through flange. |
Shipping Info
Package Weight
2.485
