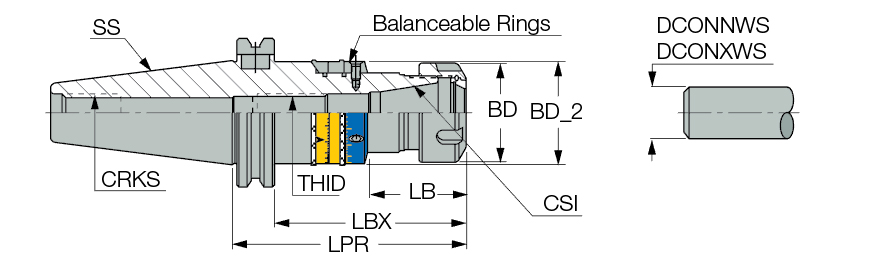

CAT40 ER32X4.000 BIN
| Connection Size (CSI) | ER16 | Tool Type | DIN 69871 |
| Body Diameter (BD) | 1.11″ | Coolant Supply Property (CSP) | Through Hole |
| Protruding Length (LPR) | 4″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Body Length Maximum (LBX) | 3-1/4″ | Measurement Type | Inch |
Product Features
| Family Description | DIN 6499 balanceable ER collet chucks with Caterpillar tapered shanks. | Country of Origin | Israel |
| Remarks | For Adaptation Click on "More Info". |
Shipping Info
Package Weight
3.1970
