CAT40 ER40X4.000 BIN
Collet Chuck ; 40 Shank Size ; ER40 Connection Size ; 2.48″ Body Dia. ; 3-1/4″ Body Length ; 0.12″ Min. Capacity ; 1.025″ Max. Capacity

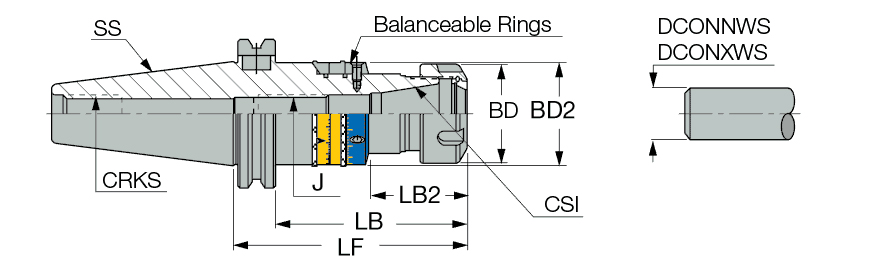

| Shank Size (SS) | 40 | Functional Length (LF) | 4″ |
| Connection Size (CSI) | ER40 | Application | | CAT Interface | TungBalance Balancable Chuck | |
| Body Diameter (BD) | 2.48″ | Tool Type | Caterpillar |
| Protruding Length (LPR) | 8″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.12″ |
| Body Length (LB) | 3-1/4″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.025″ |
| Body Length_2 (LB_2) | 1.46″ | Measurement Type | Inch |
Product Features
| Family Description | TungBalance adjustable dynamic balance collet chuck holder with CAT shank | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
