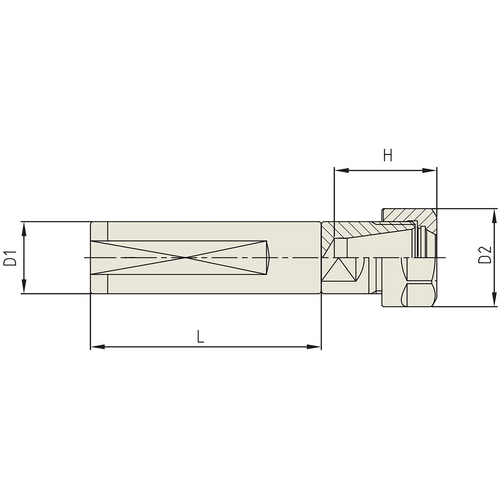

K1-ERT16-2.76 ER COLLET CHUCK
Collet Chuck ; 1″ Shank Size ; ER16 Connection Size ; 1″ Shank Dia. ; 0.019″ Min. Capacity ; 0.393″ Max. Capacity
| Shank Size (SS) | 1″ | Style | For Tapping |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.019″ |
| Protruding Length (LPR) | 2.756″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.393″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Type | K1-ERT16-2.76 |
| Functional Length (LF) | 1.248″ | Body Diameter_2 (BD_2) | 1.102″ |
| Tool Type | Straight K | Connection Code Machine Side (CCMS) | K |
Product Features
| Remarks | Supplied without the wrench. | Country of Origin | S.Korea |
Shipping Info
Package Length
3.76
Package Width
1.5
Package Height
1.5
Package Weight
0.9
