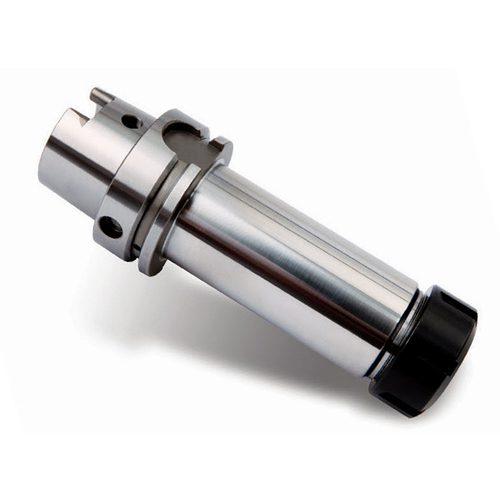

HSK100A-ER32-3.94 ER COLLET CHUCK
Collet Chuck ; HSK100A Shank Size ; ER32 Connection Size ; 1.96″ Body Dia. ; 0.078″ Min. Capacity ; 0.787″ Max. Capacity
| Shank Size (SS) | HSK100A | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.078″ |
| Body Diameter (BD) | 1.96″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Protruding Length (LPR) | 3.94″ | Type | HSK100A-ER32-3.94 |
| Tool Type | DIN 69893/ISO 12164-1-HSK Form A | Connection Code Machine Side (CCMS) | HSK |
| Style | HKS100A |
Product Features
| Remarks | Supplied without the wrench. | Country of Origin | S.Korea |
Shipping Info
Package Length
4.72
Package Width
4.72
Package Height
7.87
Package Weight
