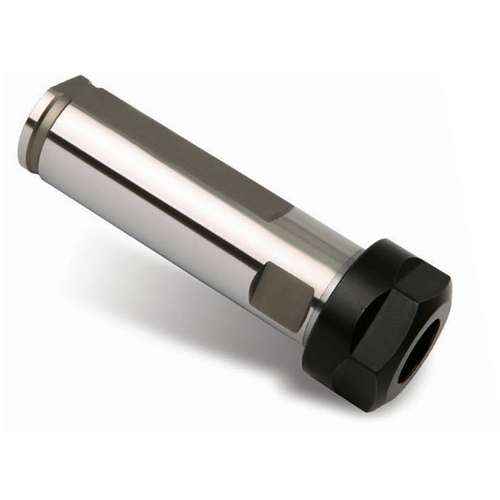

NC1-ER11 ER COLLET CHUCK
Collet Chuck ; 1″ Shank Size ; ER11 Connection Size ; 2.559″ Body Length ; 1″ Shank Dia. ; 0.019″ Min. Capacity ; 0.275″ Max. Capacity
| Shank Size (SS) | 1″ | Style | For CNC Lathe |
| Connection Size (CSI) | ER11 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.019″ |
| Body Length (LB) | 2.559″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.275″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Type | NC1-ER11 |
| Functional Length (LF) | 1.26″ | Body Diameter_2 (BD_2) | 0.748″ |
| Tool Type | NC | Connection Code Machine Side (CCMS) | NC |
Product Features
| Remarks | Supplied without the wrench. | Country of Origin | S.Korea |
Shipping Info
Package Length
4.39
Package Width
1.5
Package Height
1.5
Package Weight
0.75
